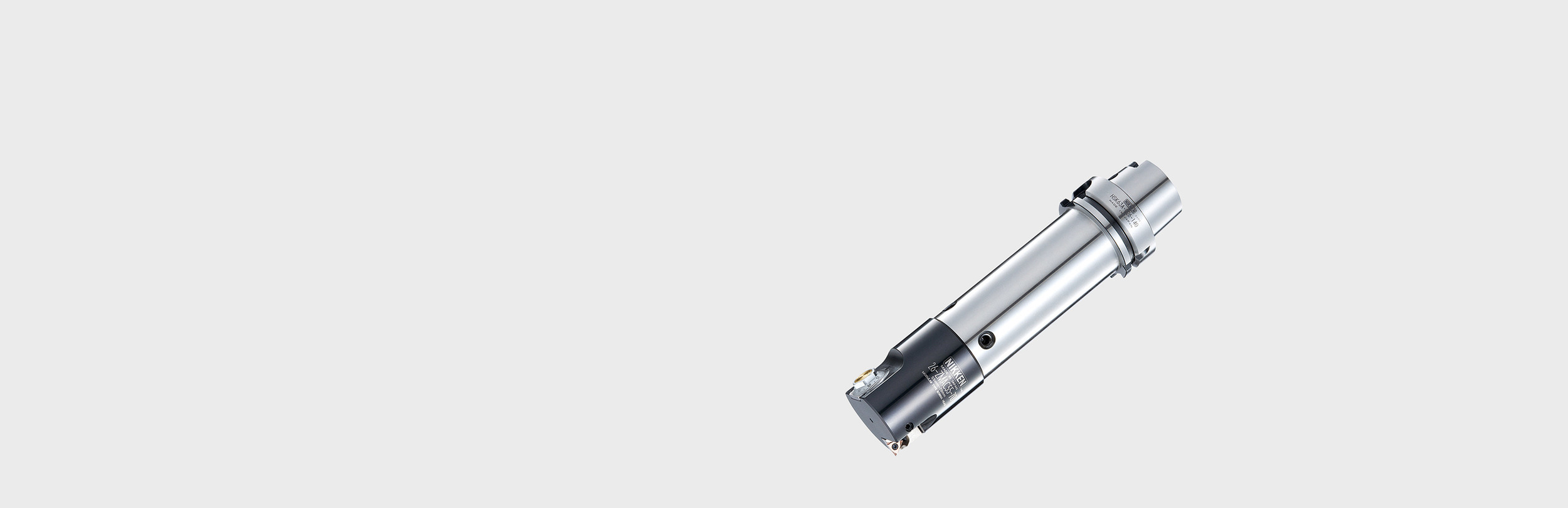

La gamma di barenature modulari NIKKEN ZMAC Advanced offre prestazioni eccellenti e precise per qualsiasi processo di semifinitura e finitura.
Disponibili con scelte di inserti e qualità selezionate esclusive NIKKEN, abbiamo due soluzioni diverse per soddisfare qualsiasi esigenza:
- NIKKEN MP / MS - Geometria triangolare dell'inserto e tasca per finitura di precisione.
- NIKKEN CC - Geometria dell'inserto romboidale e tasca per semifinitura.
È inoltre disponibile, se si preferisce una scelta di inserti di terze parti, la nostra opzione ISO avanzata NIKKEN ZMAC con tasche per cartucce per adattarsi a più scelte di inserti standard secondo necessità.
ZMAC è la nostra soluzione di alesatura di precisione definitiva: la cartuccia di alesatura stessa, a differenza delle soluzioni della concorrenza, presenta un supporto a doppio contatto altamente rigido progettato per supportare completamente la sede dell'inserto per l'intera gamma della sua corsa.
Il bullone di bloccaggio viene applicato precisamente a 90 gradi sulla vite di regolazione per annullare ogni possibilità di flessione e variazione di misurazione preimpostata.
ZMAC è costruito utilizzando un preciso quadrante graduato al micron, che dispone di una filettatura interna rettificata e subisce un trattamento termico speciale perr HV800. Questo è accoppiato a una filettatura della cartuccia rettificata di precisione che è anche temprata e trattata termicamente a HRC50-55
La soluzione viene fornita di serie con il centro attraverso l'alimentazione del refrigerante che alimenta il refrigerante attraverso l'albero, eventuali distanziali e attraverso la testa ZMAC direttamente sopra l'inserto da taglio per un raffreddamento ottimale anche in un foro ristretto.
Per ridurre il peso dell'assieme e operare a velocità di rotazione più elevate, possiamo anche fornire la nostra opzione ZMAC Alpha. Questo è costruito con uno speciale materiale in lega leggera indurito e dispone di un sistema di bilanciamento interno per contrastare le vibrazioni.
Le nostre teste di alesatura ZMAC e ZMAC Alpha (da ZMAC25) modulari standard, a seconda del gambo dell'utensile, sono disponibili in 10 dimensioni:
- ZMAC16 - per diametri da 15,9 mm a 20,2 mm.
- ZMAC20 - per diametri da 19,8 mm a 25,2 mm.
- ZMAC25 - per diametri da 24,8 mm a 32,2 mm.
- ZMAC32 - per diametri da 31,8 mm a 42,2 mm.
- ZMAC42 - per diametri da 41,8 mm a 55,2 mm.
- ZMAC55 - per diametri da 54,8 mm a 70,2 mm.
- ZMAC70 - per diametri da 69,8 mm a 85,2 mm.
- ZMAC85 - per diametri da 84,8 mm a 100,2 mm.
- ZMAC100 - per diametri da 99,5 mm a 140,5 mm.
- ZMAC140 - per diametri da 139,5 mm a 180,5 mm
-
Alta precisione con semplice regolazione in micron
-
Lega leggera disponibile per velocità più elevate
-
Supporto unico a doppio contatto
CATALOGO NIKKEN FORATURA A CONTROLLO NUMERICO NC
(PDF - 35.4 MB)
BROCHURE BARENATURA
(PDF - 70.4 MB)
Dimensioni e capacità disponibili
SHANK | BORING ARBOR | DISTANZIALE / PIASTRA | TESTA / CARTUCCIA / BIT | DIA 'D' MIN | DIA 'D' MAX | PROFONDITÀ DI FORATURA 'H' | INSERIRE | APPLICAZIONE | |
---|---|---|---|---|---|---|---|---|---|
BT40-Q12-110 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
BT40-Q12-110 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
BT40-Q12-80 + ~ + 12-ZMAC16-45AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-45V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-55AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-55V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
BT40-Q16-125 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole grinding |
BT40-Q16-125 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
BT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-125 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
BT40-Q16-95 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
BT40-Q16-95 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
BT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-95 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
BT40-Q20-110 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-110 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
BT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-110 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
BT40-Q20-80 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-80 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
BT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-80 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
BT40-Q26-140 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-140 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
BT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-140 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
BT40-Q26-95 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-95 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
BT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-95 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
BT40-Q34-110 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-110 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
BT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-110 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | Finishing |
BT40-Q34-95 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-95 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
BT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-95 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
BT40-Q42-95 + ~ + 42-ZMAC85-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
BT40-Q42-95 + ~ + 42-ZMAC85-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
BT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
BT40-Q42-95 + ~ + 42-ZMAC85R-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 195.0 | CC08 | Finishing |
BT40-Q9-80 + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-80 + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
BT40-Q9-95N + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-95N + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
BT50-Q12-125 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-125 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC16-45AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC16-45V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC16-55AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC16-55V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
BT50-Q16-125N + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-125N + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
BT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-125N + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
BT50-Q16-155 + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-155 + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
BT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-155 + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
BT50-Q20-110 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
BT50-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 142.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
BT50-Q20-125 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-125 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
BT50-Q20-125 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-125 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
BT50-Q26-140 + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-140 + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
BT50-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 117.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-140 + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 177.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
BT50-Q26-170N + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-170N + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
BT50-Q26-170N + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 182.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-170N + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
BT50-Q34-170 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-170 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
BT50-Q34-170 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 190.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-170 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
BT50-Q34-200 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-200 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
BT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-200 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 290.0 | CC12 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 325.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 325.0 | CC12 | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 375.0 | CC12 | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 425.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 425.0 | CC12 | Finishing |
BT50-Q9-110 + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-110 + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
BT50-Q9-125N + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-125N + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
HSK100A-Q12-125 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC16-45V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC16-55V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
HSK100A-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
HSK100A-Q26-170N + ~ + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
HSK100A-Q34-170 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
HSK100A-Q34-200 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
HSK100A-Q9-110 + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
HSK100A-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
HSK100A-Q9-125N + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
HSK63A-Q12-110 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-110 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC16-45AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC16-45V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC16-55AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC16-55V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
HSK63A-Q16-125 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
HSK63A-Q16-95 + ~ + 16-ZMAC32-55AAV | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
HSK63A-Q16-95 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
HSK63A-Q42-95 + ~ + 42-ZMAC85-100AAV | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
HSK63A-Q42-95 + ~ + 42-ZMAC85-100V | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
HSK63A-Q9-80 + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-80 + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
HSK63A-Q9-95N + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-95N + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
IT40-Q12-110 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-110 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC16-45AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC16-45V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC16-55AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC16-55V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
IT40-Q16-125 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-125 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
IT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-125 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
IT40-Q16-95 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-95 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
IT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-95 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
IT40-Q20-110 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-110 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
IT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-110 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
IT40-Q20-80 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-80 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
IT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-80 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
IT40-Q26-140 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-140 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
IT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-140 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
IT40-Q26-95 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-95 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
IT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-95 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
IT40-Q34-110 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-110 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
IT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-110 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
IT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | IT50 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
IT40-Q42-95 + ~ + 42-ZMAC85-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
IT40-Q42-95 + ~ + 42-ZMAC85-100V | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
IT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
IT40-Q9-80 + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-80 + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
IT40-Q9-95N + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-95N + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
IT50-Q12-125 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-125 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-125 | IT50-Q12-125 | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC16-45AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC16-45V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC16-55AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC16-55V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
IT50-Q16-125N + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-125N + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
IT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
IT50-Q16-125N + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
IT50-Q16-155 + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-155 + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
IT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
IT50-Q16-155 + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
IT50-Q20-110 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
IT50-Q20-110 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
IT50-Q20-125 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-125 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
IT50-Q20-125 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
IT50-Q26-140 + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-140 + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
IT50-Q26-140 + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
IT50-Q26-170N + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-170N + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
IT50-Q26-170N + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
IT50-Q34-170 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-170 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
IT50-Q34-170 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
IT50-Q34-200 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-200 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
IT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
IT50-Q34-200 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC140R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-225A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-225A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Schlichten |
IT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
IT50-Q42-275A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
IT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
IT50-Q9-110 + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-110 + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
IT50-Q9-125N + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-125N + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
